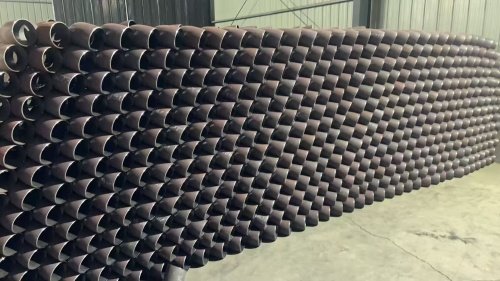

Steel 45° LR Seamless Elbow Manufacturer & Supplier

Technical Characteristics and Engineering Applications of 45° Long Radius Seamless Elbows

The 45° long radius seamless elbow is a fundamental pressure-containing fitting employed for directional redirection in industrial piping networks. Its design, fabrication, and in-service performance directly influence the operational safety and cost-effectiveness of the entire pipeline system. Distinguished from short-radius counterparts, this component is engineered in compliance with ASME B16.9, DIN 2605, and JIS B2312, featuring a bending radius fixed at 1.5 times the nominal pipe size (1.5D). This geometric configuration ensures a smoother momentum exchange path during fluid turning, inherently reducing localized resistance coefficients at the source.

From the manufacturing perspective, the elbow is integrally formed from seamless steel tube blanks through medium-frequency induction heating bending or hot extrusion, without any circumferential or longitudinal welds throughout the process. The fundamental merit of this route lies in the complete elimination of weld-related heterogeneities, residual tensile stress fields, and volumetric discontinuities such as porosity, slag entrapment, and lack of fusion. Following normalizing or quenching-and-tempering heat treatment, the cross-sectional wall thickness becomes more uniform, grain size is effectively refined, and the matching between yield strength and impact toughness is optimized. The resulting creep-rupture strength and fatigue endurance significantly surpass those of welded fittings, making this elbow particularly suitable for cyclic thermal loading and fluctuating pressure service.

In terms of fluid dynamics, the long-radius transition offers distinct engineering advantages. For single-phase liquid, gas, or gas-solid two-phase flows, this configuration effectively suppresses secondary flow intensity and boundary layer detachment, yielding a more even velocity distribution at the outlet section. Field test data indicate that, under identical Reynolds number conditions, the local resistance coefficient of a 1.5D long-radius elbow is approximately 30% to 40% lower than that of a 1.0D short-radius counterpart, while also providing a shorter pressure recovery length. For long-distance transmission pipelines or high-head pumping stations, this translates directly into reduced pump shaft power consumption and operating expenditures. Moreover, the increased curvature radius alleviates erosive wear caused by particle impingement or high-velocity fluid on the extrados, slowing wall thinning and extending the inspection interval for the entire system.

Regarding material selection, this elbow series covers carbon steel (e.g., ASTM A234 WPB), austenitic stainless steel (e.g., ASTM A403 WP304/316L), and low-alloy creep-resistant steel (e.g., ASTM A234 WP11/WP22), accommodating service temperatures ranging from –196 °C cryogenic conditions to 600 °C high-pressure steam systems. Prior to forming, each batch of forgings or tube stock undergoes spectrometric analysis, ambient/elevated-temperature tensile testing, and Charpy impact verification to ensure strict compliance with chemical and mechanical specifications. Post-forming solution annealing or stress-relief heat treatment eliminates work-hardening effects and stabilizes the microstructure, enabling finished elbows to maintain ovality, wall-thickness deviation, and bevel geometry within stringent tolerances, thereby providing precision end-prep conditions for field welding.

In engineering selection and piping layout, the 45° long radius seamless elbow is prioritized for high-pressure, highly hazardous, or safety-critical service categories. Typical applications include furnace outlet piping in petrochemical units, compressor suction/discharge pulsation damping lines, and flare vent systems on offshore platforms. Owing to its weld-free monolithic construction, this fitting eliminates the risk of radiographically unacceptable butt joints and circumvents potential failure modes such as hydrogen-induced cracking or stress-corrosion fracture at welds during operation, offering inherently superior integrity compared to welded elbows.

During field installation, standardised dimensional accuracy and consistent end-finishing quality ensure precise alignment and fit-up with mating butt-welding flanges, seamless pipes, and valve bodies. Strict straightness and flatness controls prevent additional bending moments induced by forced assembly—a critical consideration for nozzle load verification on rotating machinery. Over extended service life, excellent creep resistance and low-cycle fatigue performance enable the elbow to withstand repeated start-up/shutdown thermal cycles and pressure surges while maintaining structural soundness and leak-tightness. In summary, this fitting provides a proven, cost-effective solution balancing flow efficiency and structural toughness for pressurised systems in oil and gas, coal chemical, power generation, and district heating, serving as one of the foundational components ensuring long-term, stable, and safe operation of industrial facilities.
