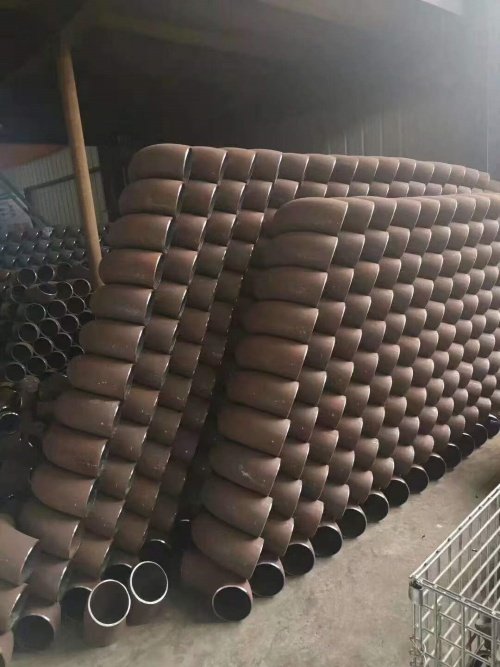

Manufacturer & Supplier of Steel 90° Long Radius Seamless Elbows

The 90° long radius (LR) seamless steel elbow is a core butt-weld piping component defined with a standard bending radius of 1.5D, universally adopted in high-pressure, high-temperature, and critical fluid transmission piping systems. Unlike welded elbows fabricated from rolled and welded steel plates, seamless elbows are integrally hot-formed from solid seamless steel pipes, eliminating longitudinal and circumferential weld joints. This structural advantage fundamentally avoids weld porosity, slag inclusion and crack defects, delivering superior structural integrity and fatigue resistance under cyclic loading and harsh service conditions.
Professional manufacturers strictly comply with international manufacturing standards including ASME B16.9, MSS SP-43 and GB/T 12459 for dimensional tolerance, wall thickness uniformity and forming quality. The product portfolio covers mainstream industrial materials: carbon steel ASTM A234 WPB, stainless steel ASTM A403 WP304/WP316L, and low-alloy steel ASTM A234 WP11/WP22, applicable for temperature and pressure grading of industrial pipelines. Complete size ranges from DN15 to DN600, with wall thickness grades of SCH10, SCH40, SCH80, SCH160, XS and XXS. All finished products are accompanied by EN 10204 3.1 material test reports, covering chemical composition, mechanical properties and non-destructive testing (NDT) results to achieve full product traceability.
The 1.5D long-radius bending design optimizes internal fluid dynamics effectively. The smooth arc transition minimizes fluid turbulence, local pressure loss and medium scouring on the pipe inner wall, significantly reducing pipeline resistance and extending the service life of piping systems. Compared with short-radius elbows, LR seamless elbows are the mandatory priority for process piping in petrochemical, thermal power, natural gas transmission, marine engineering and water treatment industries, especially for pipelines conveying corrosive, abrasive and high-velocity media.

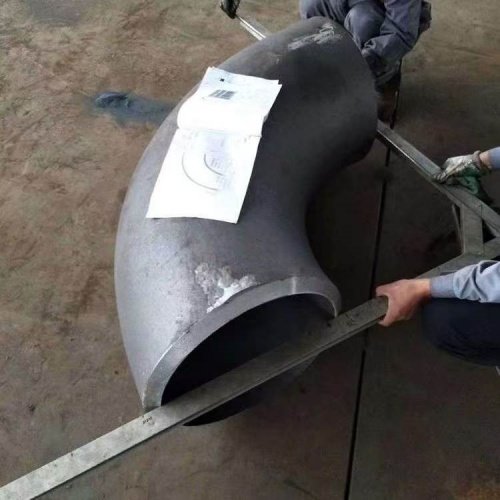

Reliable suppliers implement full-process quality control to ensure product consistency. The whole production workflow includes raw material incoming inspection, dimensional verification, hot pushing integral forming, precision end beveling, heat treatment for stress relief, dimensional re-inspection, visual inspection and 100% NDT detection (UT/RT/MT as required). Custom non-standard sizes, special wall thicknesses and tailored surface treatments such as black anti-rust coating, transparent rust-proof oil and hot-dip galvanizing are available to meet diverse project site requirements.
In industrial pipeline engineering, elbow quality is directly related to operational safety and system stability. Substandard elbows with uneven wall thickness, insufficient forming and residual stress will easily cause medium leakage, pipeline vibration and premature failure during long-term operation. Selecting qualified professional manufacturers with standardized production and complete inspection systems is the key guarantee for long-term safe and stable operation of industrial piping systems.
