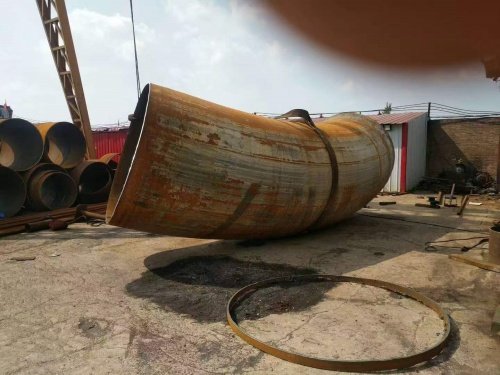

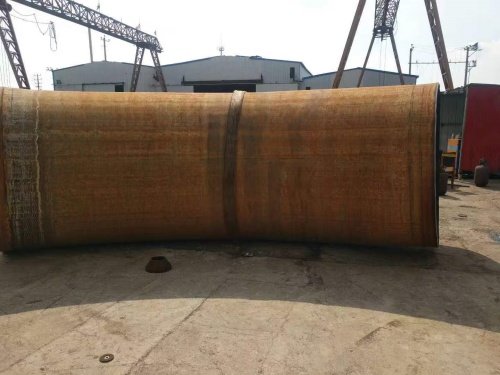

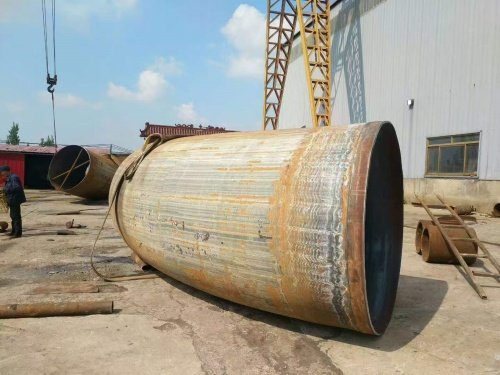

Steel 45° 3D Seamless Elbow Manufacturer & Supplier

Title: High-Performance Carbon Steel Seamless 45° 3D Elbows: Precision Engineering for Critical Piping Systems.Product Overview & Engineering Advantages
In high-pressure industrial piping networks, the structural integrity and flow dynamics of every connection are paramount. Our Carbon Steel Seamless 45° 3D Elbows are precision-engineered to deliver superior fluid dynamics and mechanical reliability. Unlike standard short-radius fittings, the 3D curvature (where the center-to-end radius is three times the nominal pipe diameter) significantly minimizes pressure drop, turbulence, and erosion-corrosion at the intrados. Manufactured from high-grade carbon steel (e.g., P235GH-TC1), these seamless butt-weld fittings are specifically designed to withstand the rigorous demands of critical infrastructure.
Technical Specifications & Manufacturing Standards
We adhere to strict international manufacturing protocols to ensure dimensional accuracy and material traceability. Our 45° 3D elbows are fully compliant with EN10253-2, guaranteeing consistency in wall thickness, end preparation, and mechanical properties.
Manufacturing Standard: EN10253-2 (Type 2, Class 1) for seamless steel butt-welding fittings.
Material Grade: P235GH-TC1, optimized for elevated temperature service and high-pressure environments.
Connection Type: Seamless Butt-Weld (BW) with beveled ends (typically 37.5° ± 2.5°) to facilitate full-penetration welding.
Dimensional Range: Extensive inventory covering diverse bore sizes, including but not limited to:
48.30 x 2.60 mm (Radius: 57.00 mm)
114.30 x 3.60 mm (Radius: 152.00 mm)
323.90 x 7.10 mm (Radius: 457.00 mm)
508.00 x 11.00 mm (Radius: 762.00 mm)
Quality Assurance & Application Scop
As a specialized manufacturer, we maintain full control over the production lifecycle, from raw material procurement to non-destructive testing (NDT). The seamless construction eliminates weld seams at the crown, making these elbows ideal for petroleum refining, chemical processing, power generation, and gas transmission industries. We provide comprehensive documentation, including EN 10204 3.1 Material Certificates, and offer customized surface treatments such as grit blasting and anti-corrosion painting to meet specific project specifications.
Global Supply & Technical Inquiry
Whether you require standard EN10253-2 fittings or custom-engineered solutions, our technical team is ready to support your procurement needs. We maintain strategic stock levels for rapid deployment and offer competitive pricing for bulk project orders.
Contact us today for a detailed technical quotation, mill test certificates, or CAD drawings. Let us be your reliable partner in critical piping solutions.
